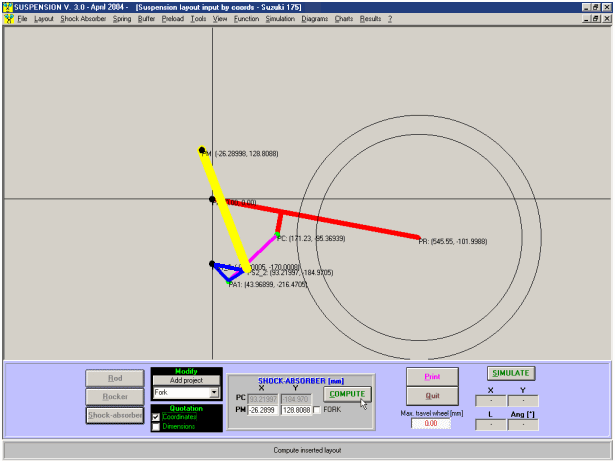

GEOMETRICAL SUSPENSION LAYOUT DRAWING

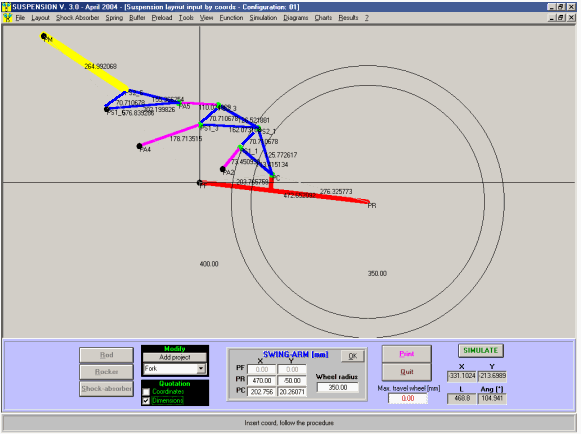

 ANY LAYOUT TYPOLOGY IS POSSIBLE!

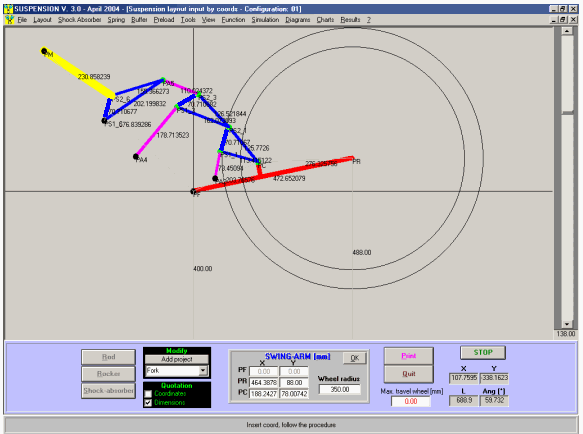

SIMULATION OF PROJECTED SUSPENSION LAYOUT
WHEEL TRAVEL=138 mm

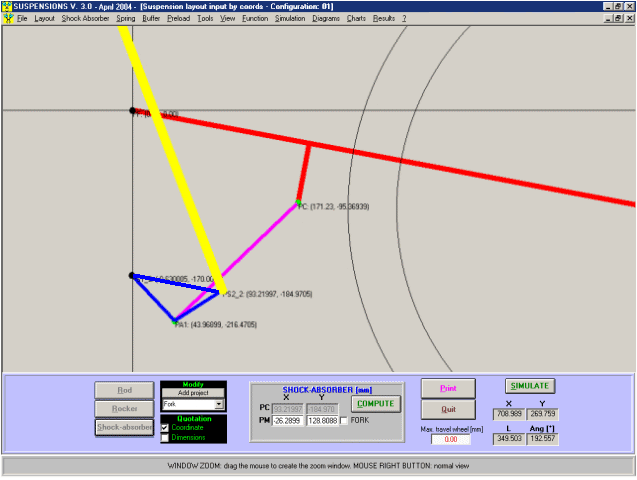

LAYOUT ZOOM PROCEDURE

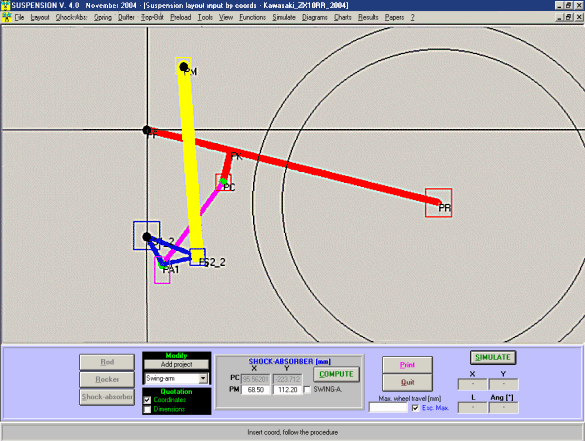

"SUZUKI GSX-R 1000 2004" LAYOUT

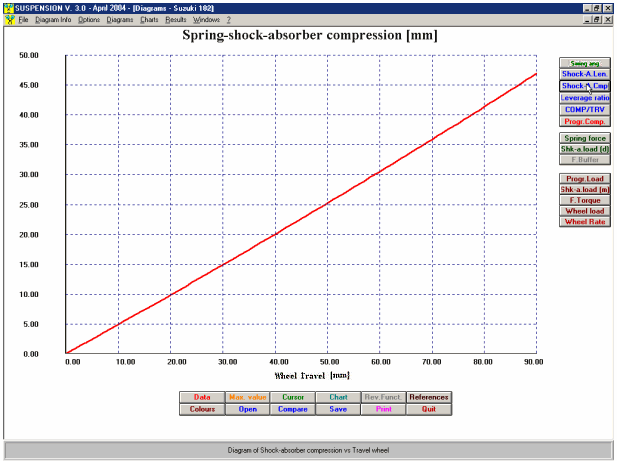

"SPRING-SHOCK ABSORBER COMPRESSION" DIAGRAM

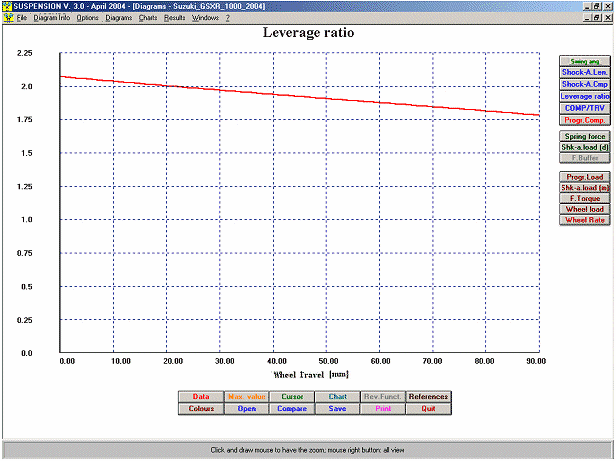

"LEVERAGE RATIO" DIAGRAM

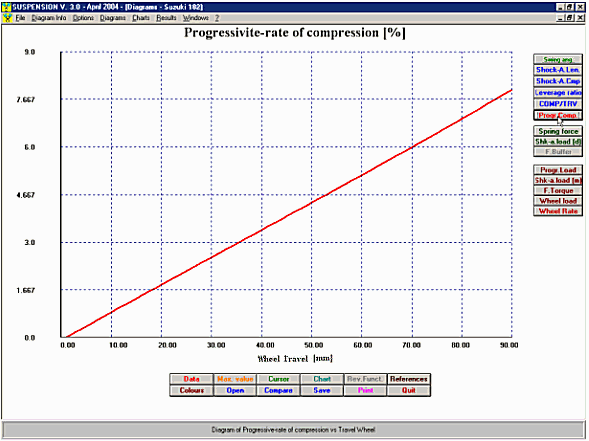

"PROGRESSIVE-RATE OF COMPRESSION" DIAGRAM

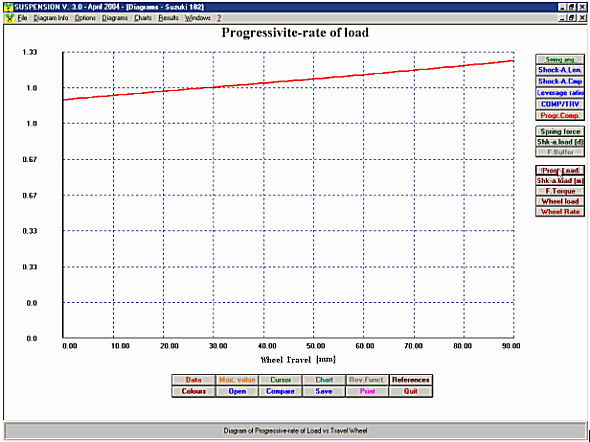

"PROGRESSIVE-RATE OF LOAD" DIAGRAM

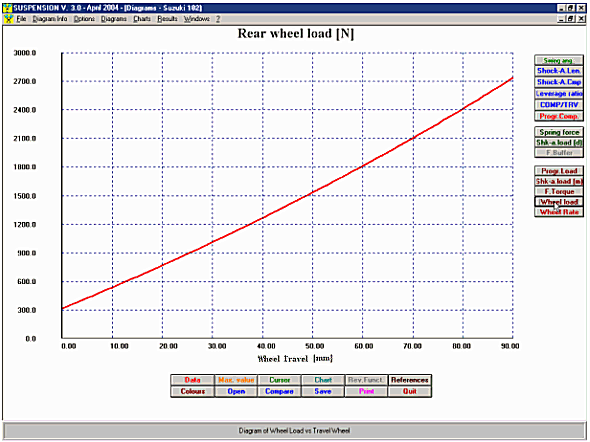

"REAR WHEEL LOAD" DIAGRAM

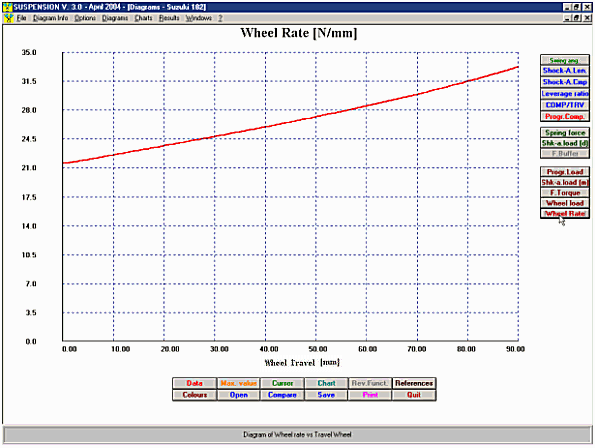

"REAR WHEEL RATE" DIAGRAM

REVERSE FUNCTION PROCEDURE: SWAPPING AREAS SETUP

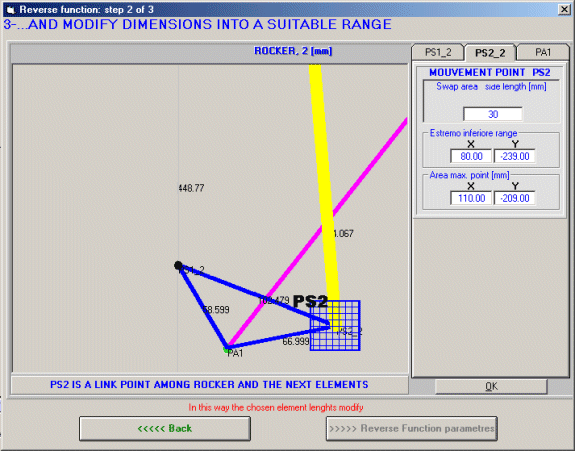

REVERSE FUNCTION PROCEDURE: SELECTED VERTECES MOUVEMENT

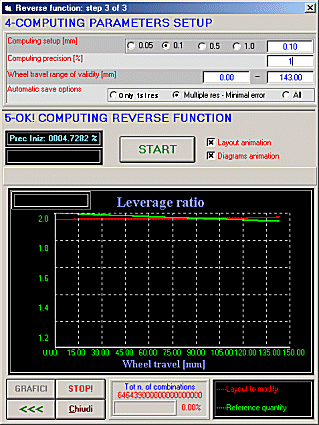

REVERSE FUNCTION PROCEDURE: IT'S POSSIBLE TO SEE THE DIAGRAM MOUVEMENTS DURING SIMULATION

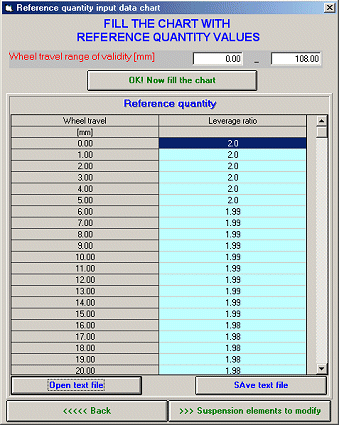

REVERSE FUNCTION PROCEDURE: EXPERIMENTAL LEVERAGE RATIO DATA IMPORTATION FUNCTION

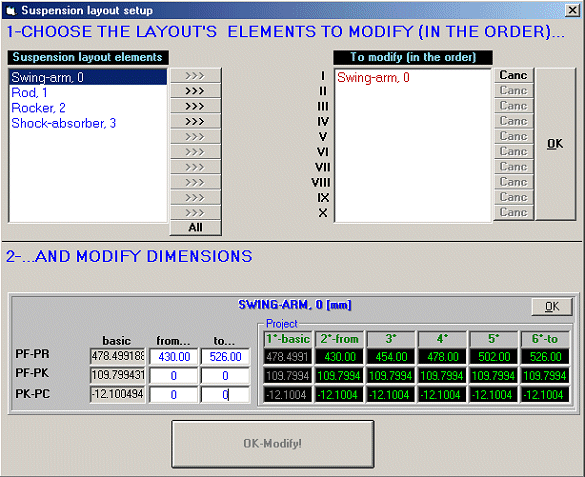

SIX LAYOUTS CREATION USIN "PROFESSIONAL LAYOUT SETUP": SWING ARM VARIES FROM  430 TO 526 mm (Original length: 478.5 mm)

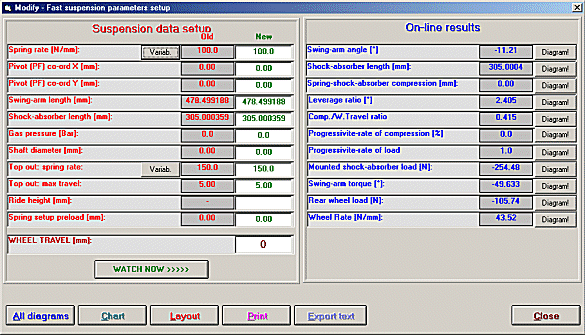

FAST LAYOUT SETUP PROCEDURE
