SOFT-ENGINE presents the LCP
production (Products Low Cost). These products are suitable for
people who like testing some particular vehicles like minibikes, scooter
or kart; also, these products are suitable for new workshop, schools
(educational dynamometers) etc... These
dynamometers are suitable for a semi-professional workshop and tuners. The
cost is very cheap, but obviously the quality (and assistance) standard is
always SOFT-ENGINE.
The
LCP production is made by:
|
|
INERTIAL
(DRUM) DYNAMOMETER FOR MOTORCYCLES |
“INERTIAL 100 ECO” |
|
|
INERTIAL
(DRUM) DYNAMOMETER FOR MINIBIKES |
“MINI 15” |
|
|
INERTIAL
(DRUM) DYNAMOMETER FOR SCOOTERS |
“SCOOT 25” |
|
|
INERTIAL (DRUM)
DYNAMOMETER FOR KART ENGINE
|
“KART
40” |
|
|
BRAKED
DYNAMOMETER FOR ENGINE (EDUCATIONAL DYNO)
|
“DYDA
20” |
|
|
ACQUISITION
KIT FOR INERTIAL DYNAMOMETERS |
|
|
|
ACQUISITION
KIT FOR BRAKED DYNAMOMETERS |
|
|
|
|
MOTORCYCLE
DYNAMOMETER MODEL "INERTIAL 100 ECO"
|
Inertial
dynamometer
to test little motorcycles up to 150
HP, suitable for little bikes
and scooters. The main features are:
|
-Dynamometer:
|
Inertial
dyno for motorcycles, little bikes and scooters.
|
|
-Max.
Horsepower:
|
150
HP
|
|
-Software:
INERTIAL 3.0:
|
-Only
accelerative tests;
-Management
of one temperature channel
(optional);
-Basic
devices.
|
|
-Electronic:
|
-Drum rpm sensor;
-Cables;
-Data
store card for PC.
|
|
-Mecanics:
|
-Complete
mechanics with closed sheets
and covers, according to
safety rules;
-Single
drum
-Dim:
2200x800x420 mm;
-Weight:
530 Kg.
|
Dynamometers comply with EC
directive 98/37
|
|
MINIBIKE
DYNAMOMETER MODEL "MINI 15"
|
Inertial
dynamometer to
test minibikes up to 20
HP. The main
features are:
|
-Dynamometer:
|
Inertial
dyno for minibiles
|
|
-Max.
Horsepower:
|
More
than 20
HP
|
|
-Software:
INERTIAL 3.0:
|
-Only
accelerative tests;
-Management
of one temperature channel
(optional);
-Basic
devices.
|
|
-Electronic:
|
-Drum
rpm sensor;
-Cables;
-Data
store card for PC.
|
|
-Mecanics:
|
-Dimensions: 400x950x200 mm;
-Weight: 80 Kg.
|
Dynamometers comply with EC
directive 98/37
|
|
|
SCOOTER
DYNAMOMETER MODEL "SCOOT 25"
|
Inertial
dynamometer to test
minibikes, little bikes and scooters
up to 25 HP. The main features are:
|
-Dynamometer:
|
Inertial
dyno for little bikes and scooters
|
|
-Max.
Horsepower:
|
More
than 30 HP
|
|
-Software:
INERTIAL 3.0:
|
-Only
accelerative tests;
-Management
of one temperature channel
(optional);
-Basic
devices.
|
|
-Electronic:
|
-Drum
rpm sensor;
-Cables;
-Data
store card for PC.
|
|
-Mecanics:
|
-Dimensions: 400x1550x200 mm;
-Weight: 120 Kg.
|
Dynamometers
comply with EC directive 98/37
|
|
|
KART
DYNAMOMETER MODEL "KART 40"
|
Inertial
dynamometer to test
kart engine up to 40
HP, suitable for kart, little
bikes and scooters engine.
The engine must be placed in the dynamometer's supports. The main features
are:
|
-Dynamometer:
|
Inertial
dyno for kart, little bikes and scooters engine.
|
|
-Max.
Horsepower:
|
40
HP
|
|
-Software:
INERTIAL 3.0:
|
-Only
accelerative tests;
-Management
of one temperature channel
(optional);
-Basic
devices.
|
|
-Electronic:
|
-Drum
rpm sensor;
-Cables;
-Data
store card for PC.
|
|
-Mecanics:
|
-Made
by a flywheel-starter clutch group, and by
the bed for the engine;
-Dimensions:
800x800x800 mm;
-Weight: 400 Kg.
|
Dynamometers
comply with EC directive 98/37
|
|
|
ENGINE
EDUCATIONAL DYNAMOMETER MODEL "DYDA 20"
|
This
braked dynamometer is made for educational
purpopuses. It's possible
to test scooters, little bikes, etc... engine up to 20
HP.It's particularly suitable for schools and for people who
like to arrange educational-purpouse laboratories, to study the engine
behaviour.
The engine must be placed in the
dynamometer's supports. The main features are:
|
-Dynamometer:
|
Braked
dynamometer, for engine
|
|
-Max.
Horsepower:
|
20
CV
|
|
-Software:
BRAKER 3.0:
|
-Braked tests, the HP is measured point by point;
-Two temperatures and one lambda channels
management (optional)
|
|
-Electronic:
|
-Drum
rpm sensor;
-Cables;
-Data
store card for PC.
-Eddy current brake driver device;
-Load cell, up to 100 Kg.
|
|
-Mecanics:
|
-Make
by a brake group, without the bed;
-Dimensions:
450x800x800 mm;
-Weight:
200 Kg.
|
|
-Eddy current brake
|
Dynamometers
comply with EC directive 98/37
|
|
|
ACQUISITION
KITS
|
The ACQUISITION KITS
are LCP products to up-date any kind
of old or craft dynamometers. The kit purpouse is to add or
substitute the electronic and the software to the mechanic part of the old
dynamometer. So this one can be compatible with our electronic/informatic
system. The KITS are:
|
-KIT
ELECTRONIC FOR INERTIAL DYNOS
|
-Drum
rpm sensor;
-Data
store card for PC;
-Cables;
-Software:
INTERTIAL 3.0.
|
|
-KIT
ELECTRONIC FOR BRAKED DYNOS
|
-Drum
rpm sensor;
-Data
store card for PC;
-Software
BRAKER 4.0 (professional), compatible
with all the accesories
of the professional
cathegory.
|
The

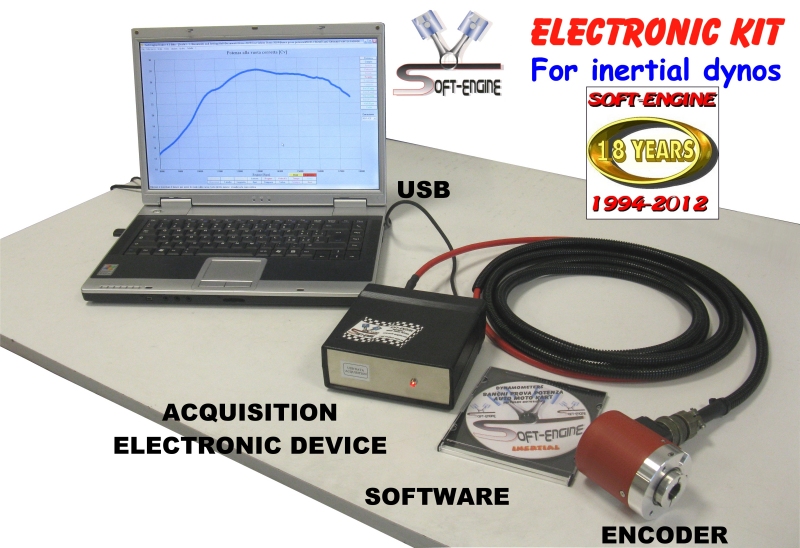

kit works with notebooks also. The
Electronic Kit for inertial dynamometers. The notebook (or the PC) is not
included.
|
|
|
